Product Description

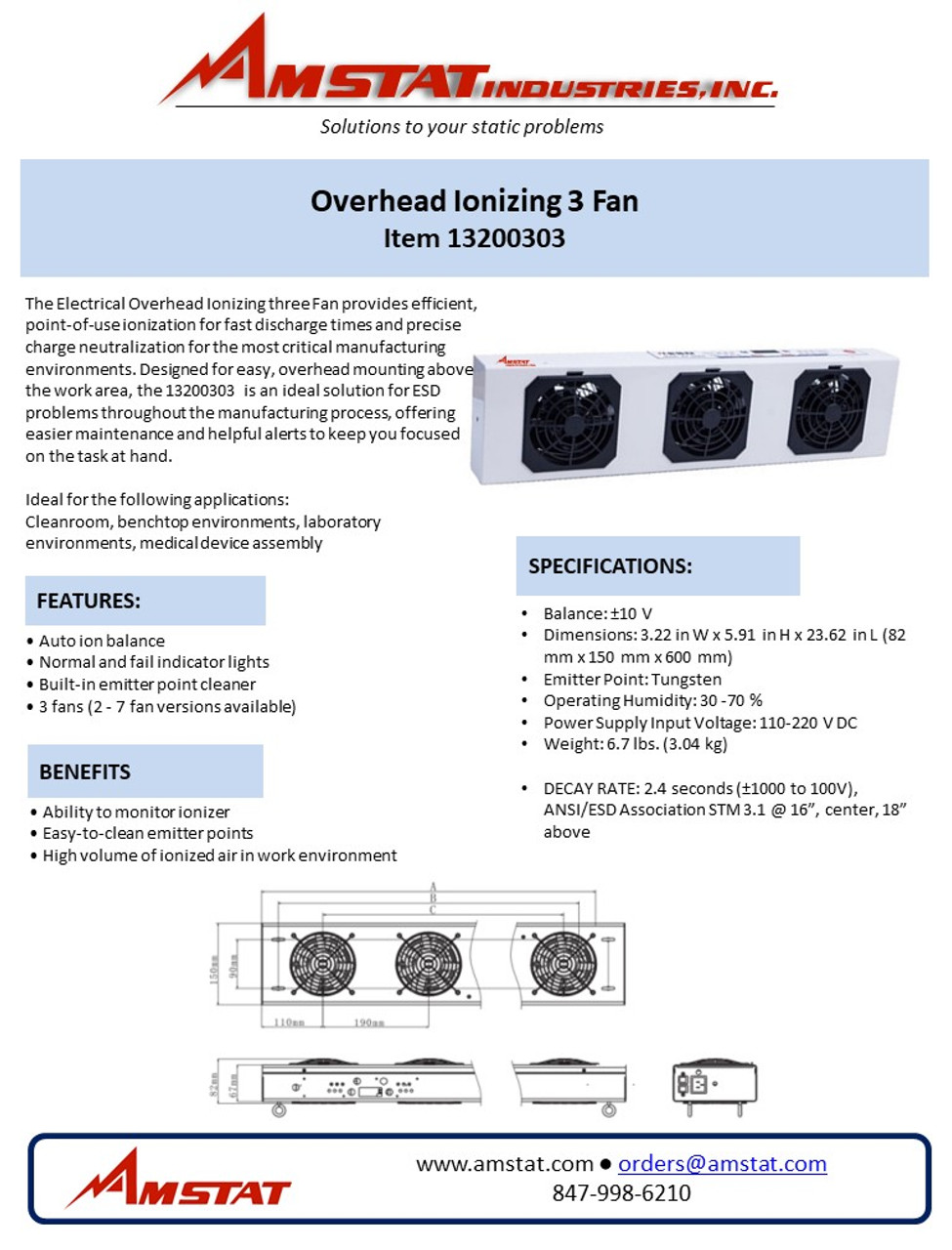

The Amstat overhead 3 head Ionizing triple Fan provides efficient, point-of-use ionization for fast discharge times and precise charge neutralization for the most critical manufacturing environments.
Designed for easy, overhead mounting above the work area, the 13200303/6222 is an ideal solution for ESD problems throughout the manufacturing process, offering easier maintenance and helpful alerts to keep you focused on the task at hand.
Specifications:
- Balance: ±10 V
- Dimensions: 3.22 in W x 5.91 in H x 23.62 in L (82 mm x 150 mm x 600 mm)
- Emitter Point: Tungsten
- Operating Humidity: 30–70%
- Power Supply Input Voltage: 110–220 V DC
- Technology: Corona
- Weight: 6.7 lbs. (3.04 kg)
- Decay Rate: 2.4 seconds (±1000 to 100V), ANSI/ESD Association STM 3.1 @ 16”, center, 18” above
